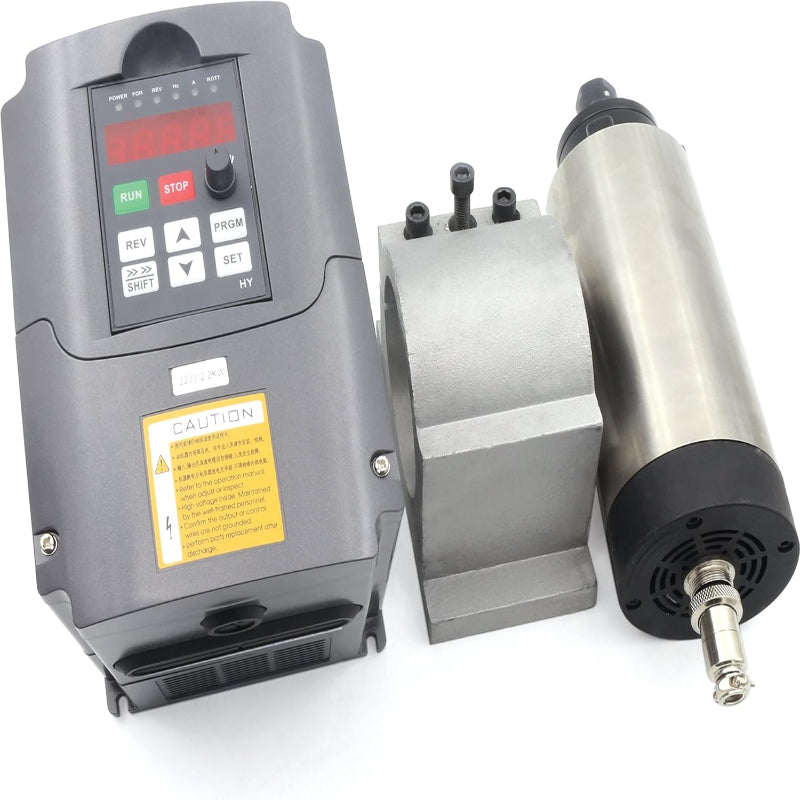

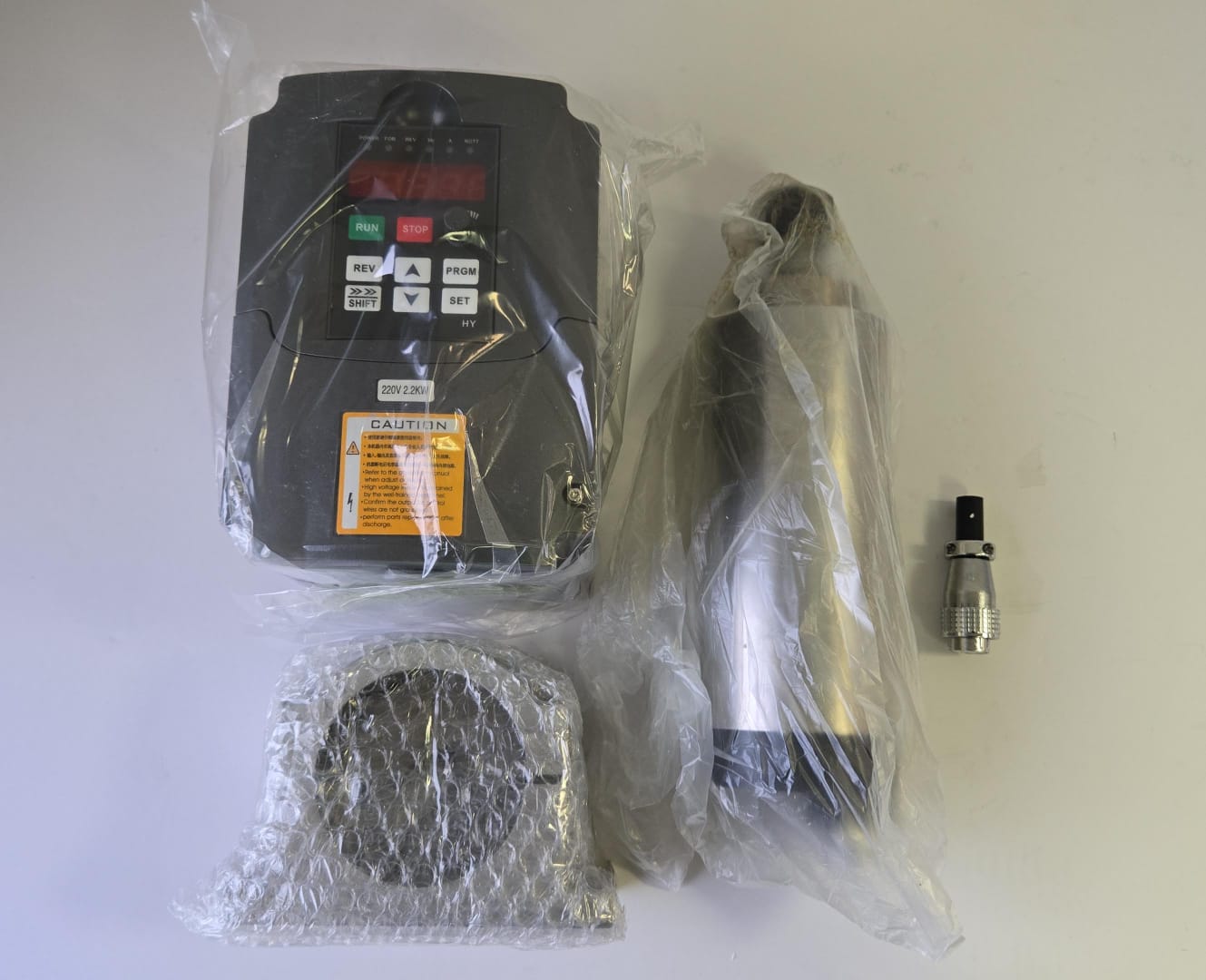

(Excellent) RATTMMOTOR 1.5KW Air Cooled Spindle Motor ER16 CNC Kit + 1500W 1.5kw Inverter Variable Frequency Drive 220V + 80mm Clamp Mount Bracket for CNC Router Engraving Milling Machine

Brand    RATTMMOTOR
Speed    24000 RPM
Voltage    220 Volts
Horsepower    1.5 Kilowatts

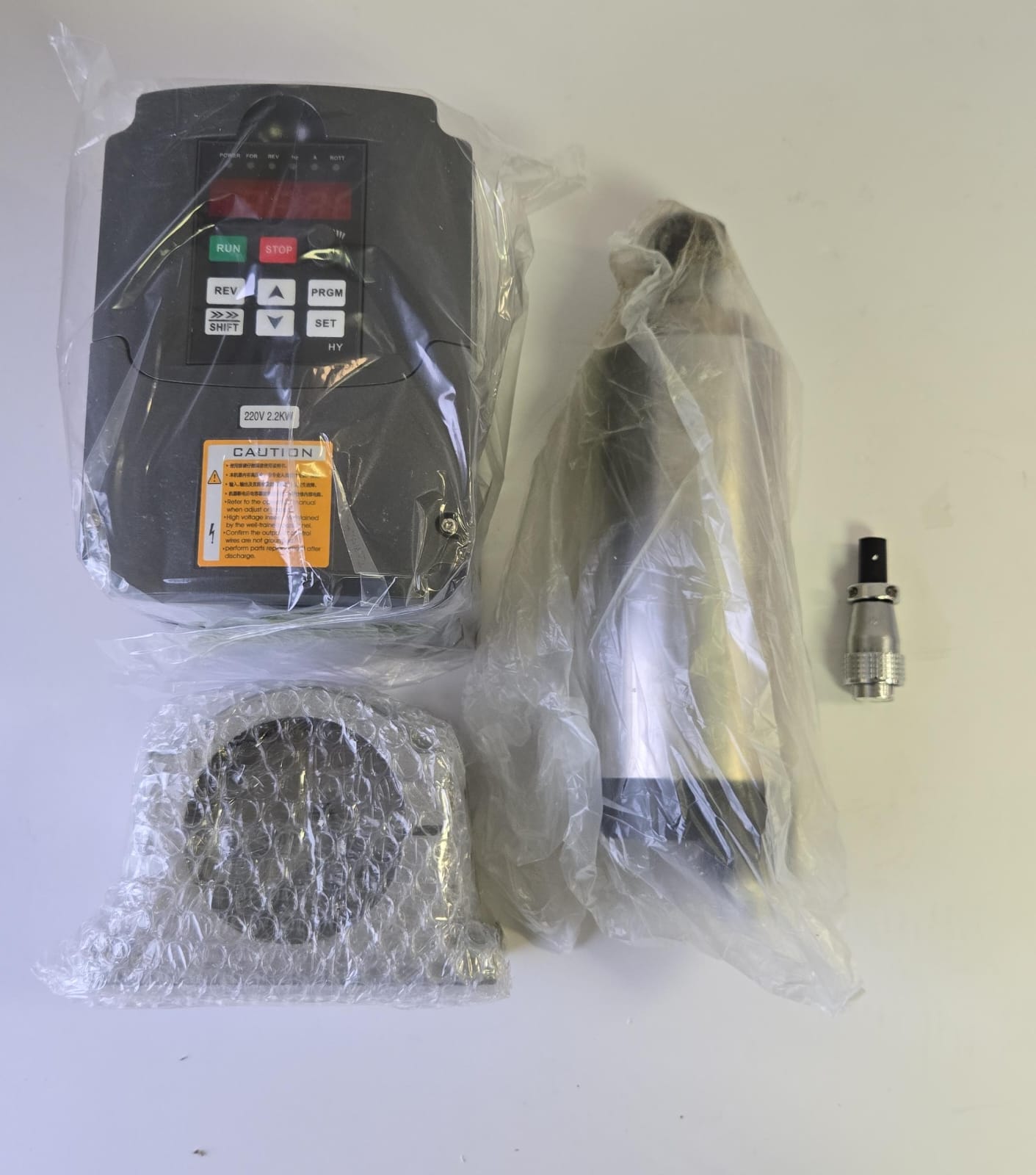

Condition: Used Excellent

About the Item:

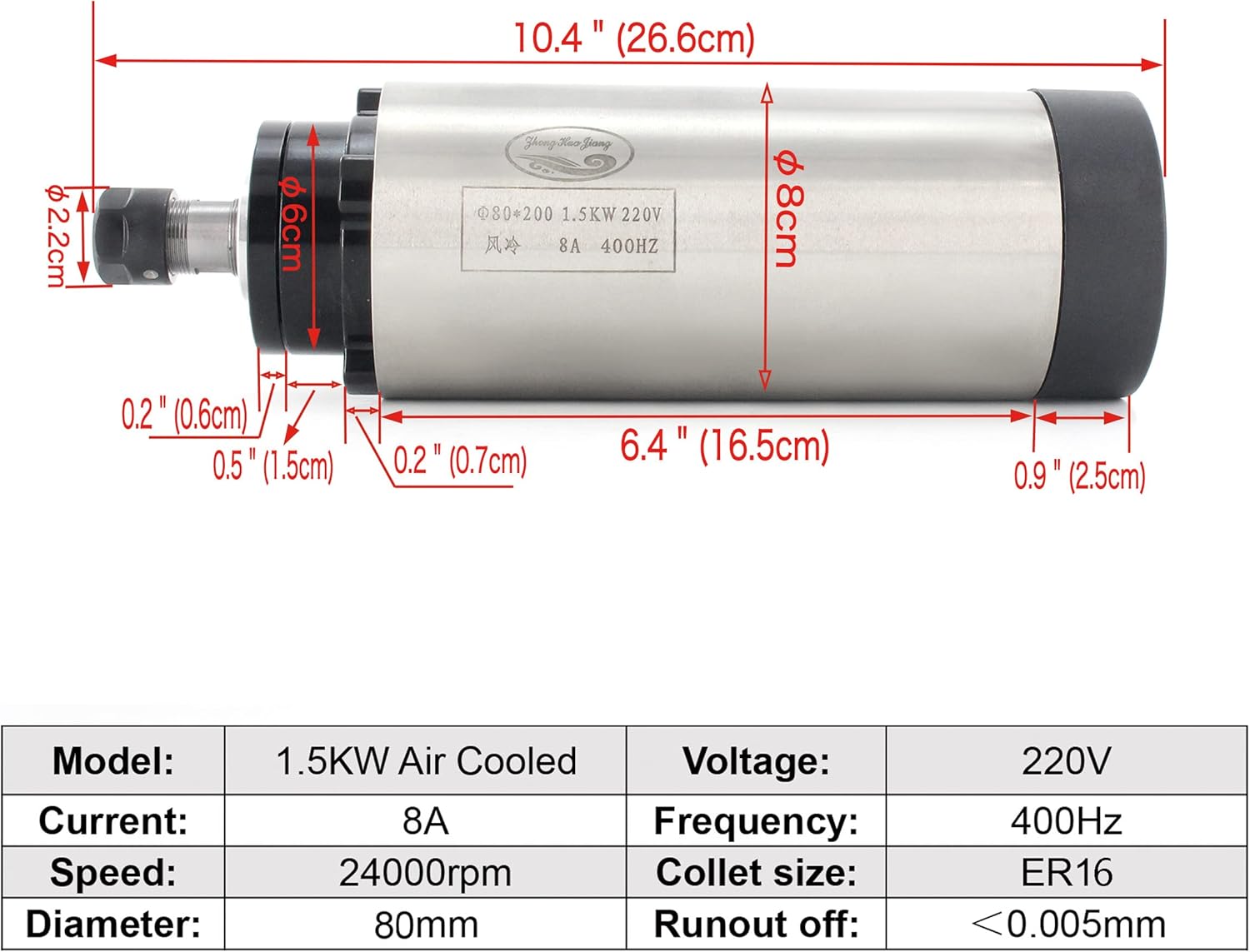

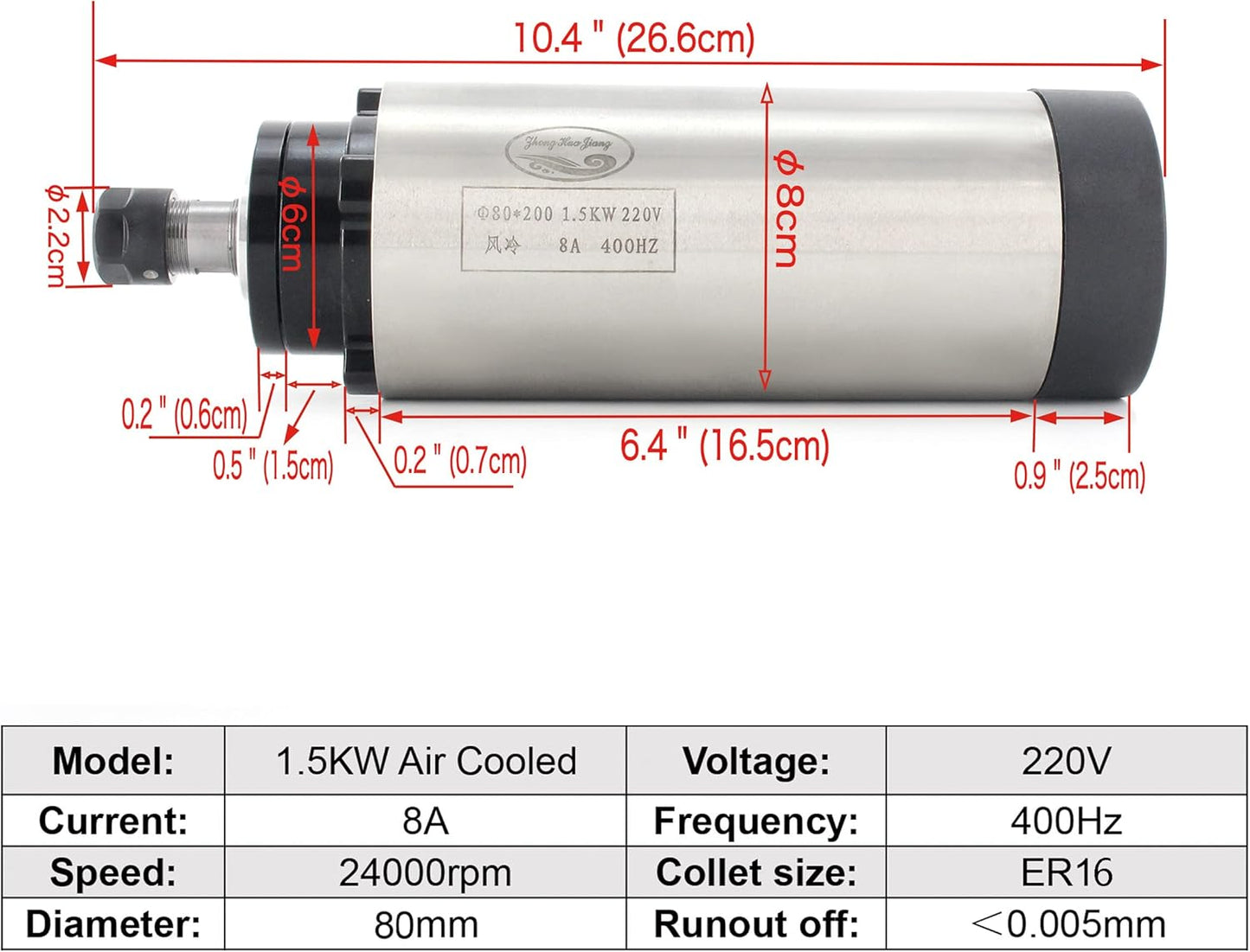

• 【Spindle Motor Parameters】Diameter: 80 mm x Length: 200 mm, the 1.5KW air-cooled spindle motor's 220V, 8A, 400HZ frequency, less than 0.05mm runout off, 0-24000RMP speed. It should be noted that the spindle speed must be kept above 9000 rpm, otherwise the spindle will be damaged.
• 【Spindle Motor Features】This spindle is designed with a dustproof and waterproof cover, the body is made of stainless steel, and the rear is equipped with a cooling fan, which is of high quality. In addition, it contains 3 bearings, high-precision grinding taper hole, high-precision, low noise.

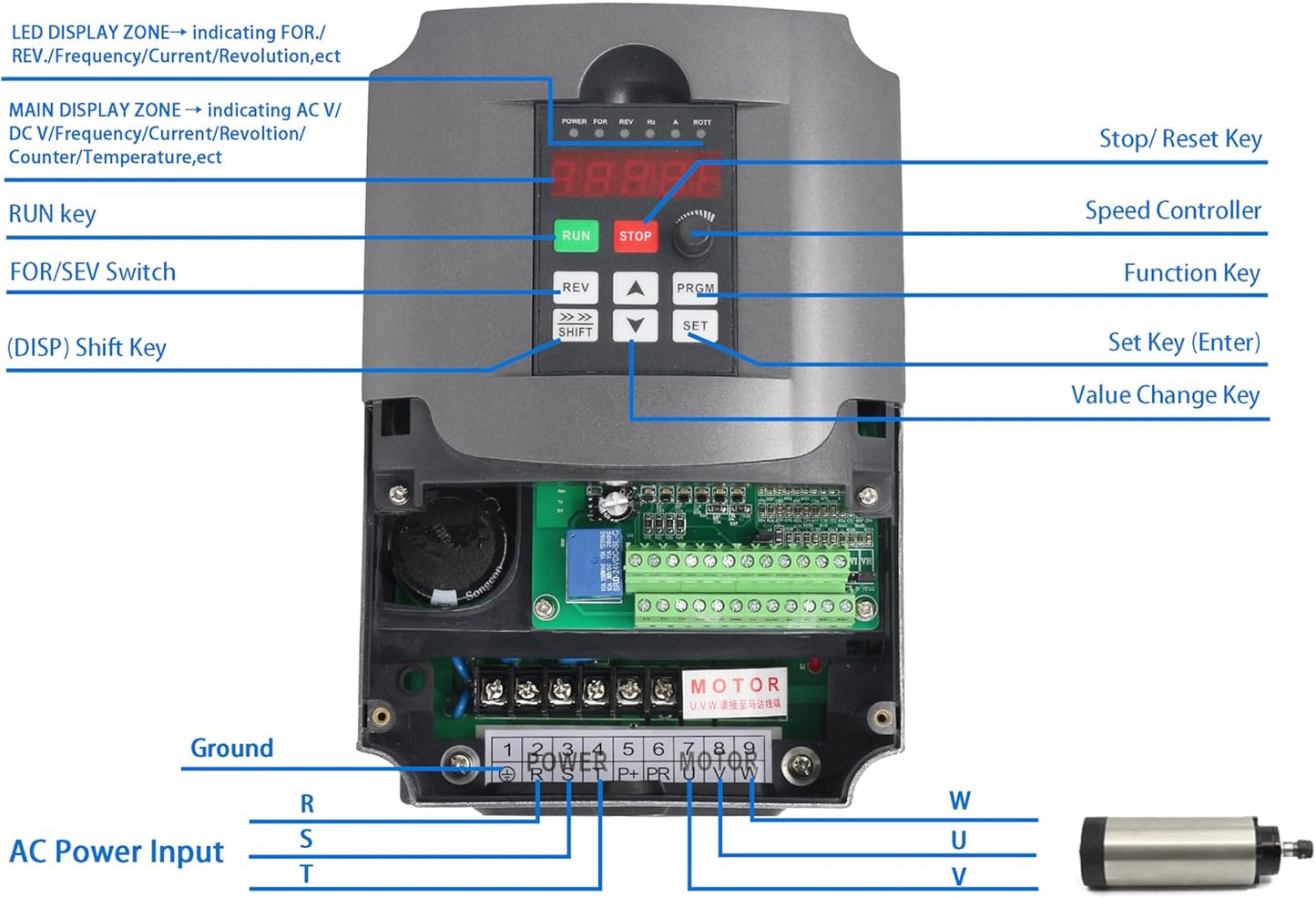

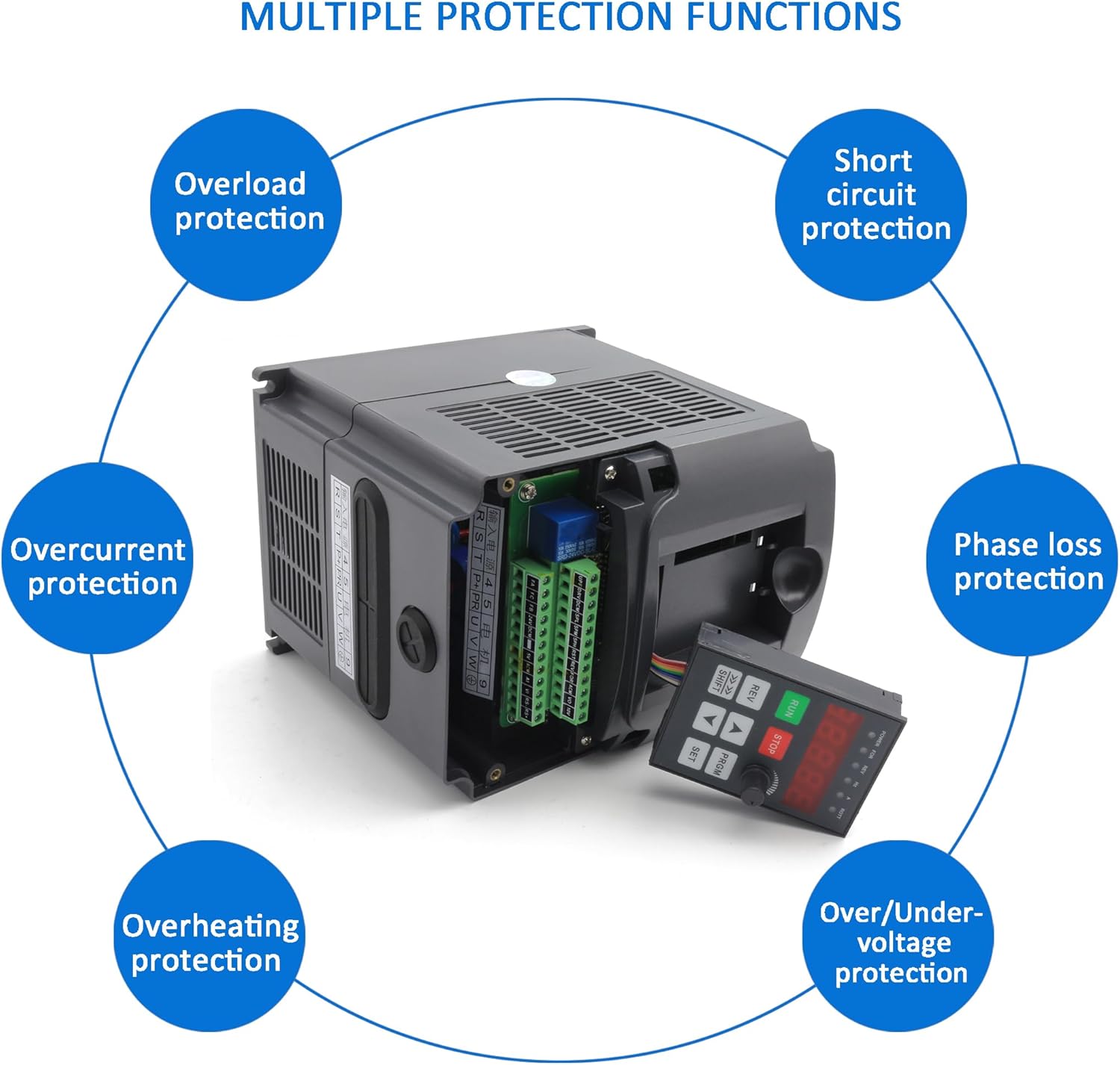

• 【VFD Inverter Parameters】The 1.5KW variable frequency drive inverter has five-digits display and status indicator lamp display frequency, current, revolution, voltage, counter, temperature, foward or reverse running, fault, ect. Control Model: SPWN. Input Voltage: 220V(+/-15%) ,Output Voltage 208VAC-240VAC, Input Frequency: 48-63 Hz, Output Frequency: 0-400 Hz, Input Phase: 1 or 3 phase, Output Phase: 3 phase.

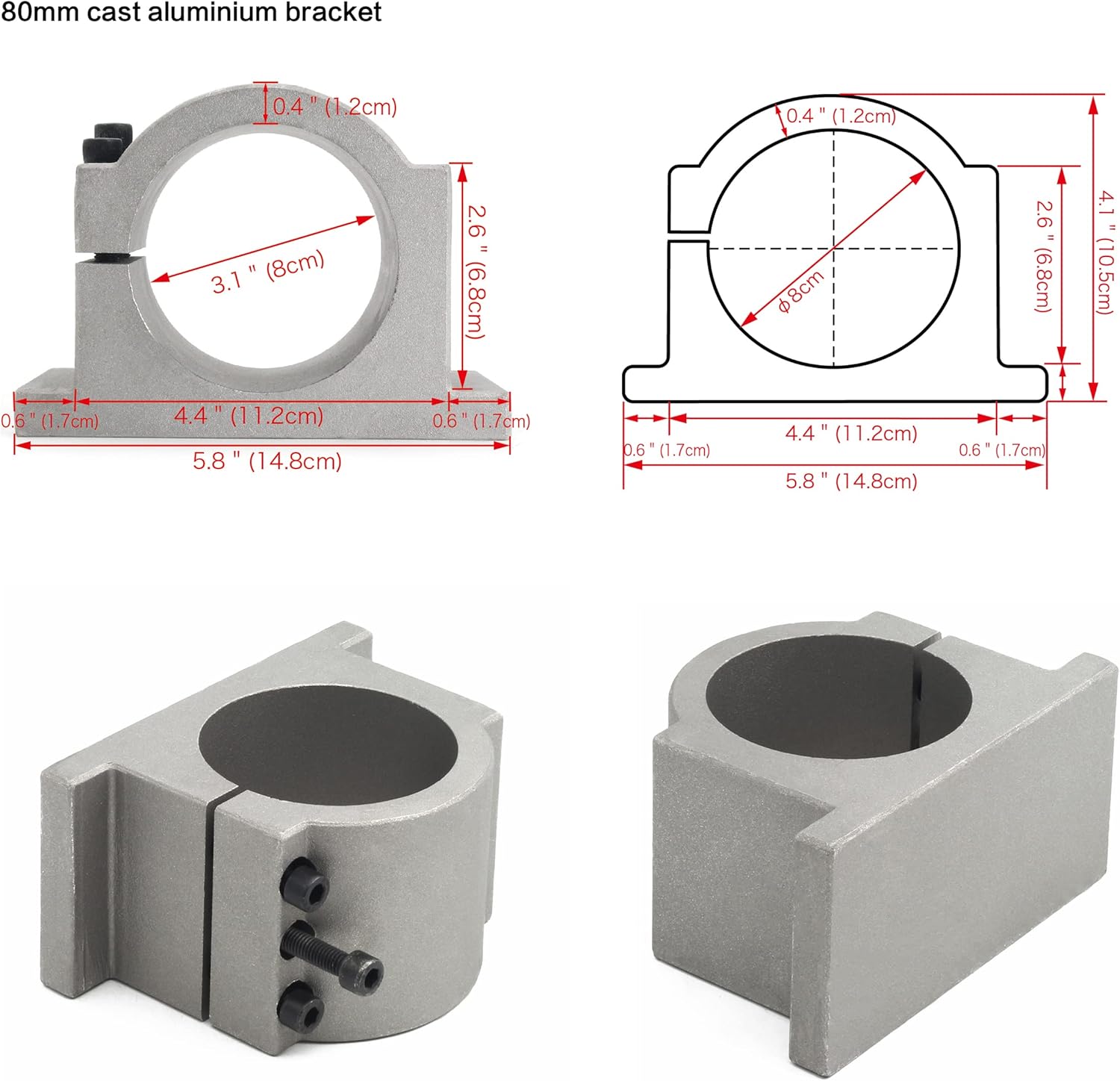

• 【Spindle Motor Mount】80MM spindle motor mount is made of high-qualirt cast aluminum by special manufacturing process. It has higher precision, less deformation, stronger toughness, stronger impact resistance and oxidation resistance, higher hardness. By the way, it also suitable for other water-cooled or air-cooled spindle which the diamater is 80mm.

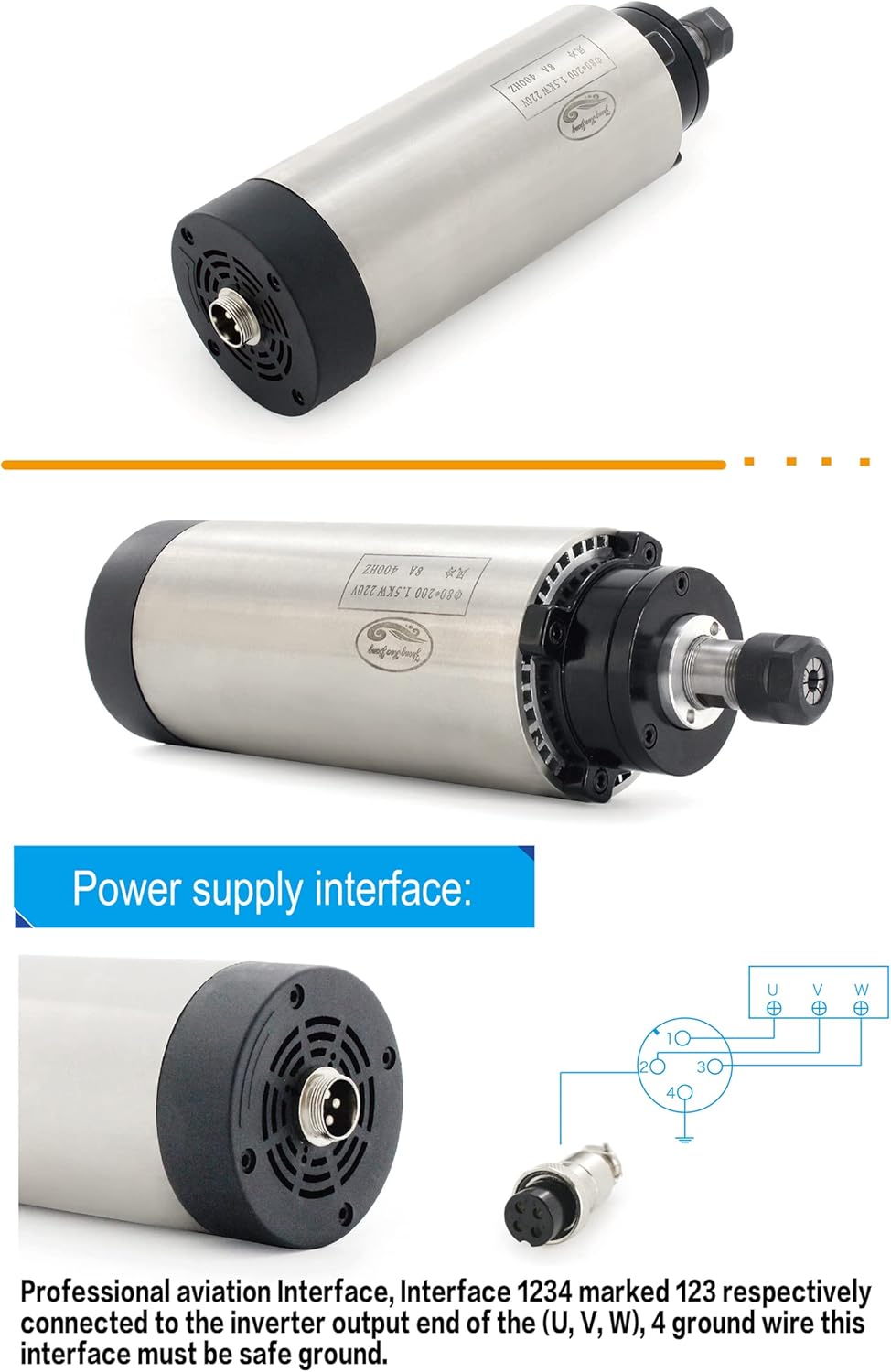

• 【How to Connect Spindle Motor and VFD】The spindle motor's aviation plug marked with number 1, 2, 3, 4. Number 1, 2, 3 port are connected separately with inverter's port U, V, W. Number 4 is the ground wire, no wiring is required.
