(Excellent) RATTMMOTOR CNC VFD Spindle Motor Kits 2.2KW 220V Water Cooled Spindle Motor Φ80mm ER20 400Hz 24000RPM+VFD Drive Inverter+80mm Motor Mount Clamp+14pcs ER20 Collet+80W Water Pump for CNC Router

Brand: RATTMMOTOR
Voltage: 220 Volts
Horsepower: 2.2 Kilowatts

Condition: used-excellent

About the Item:

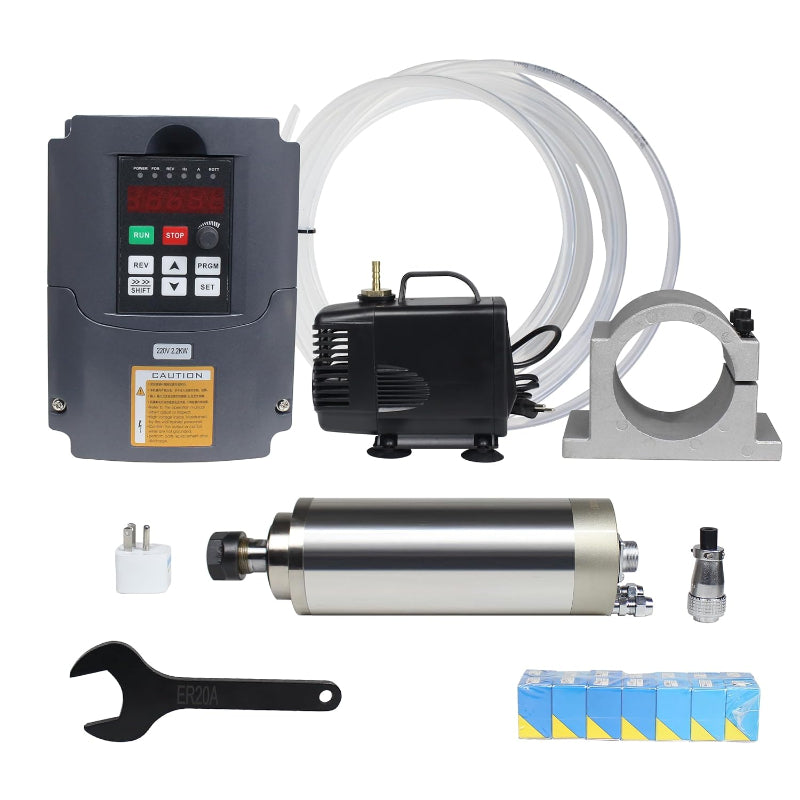

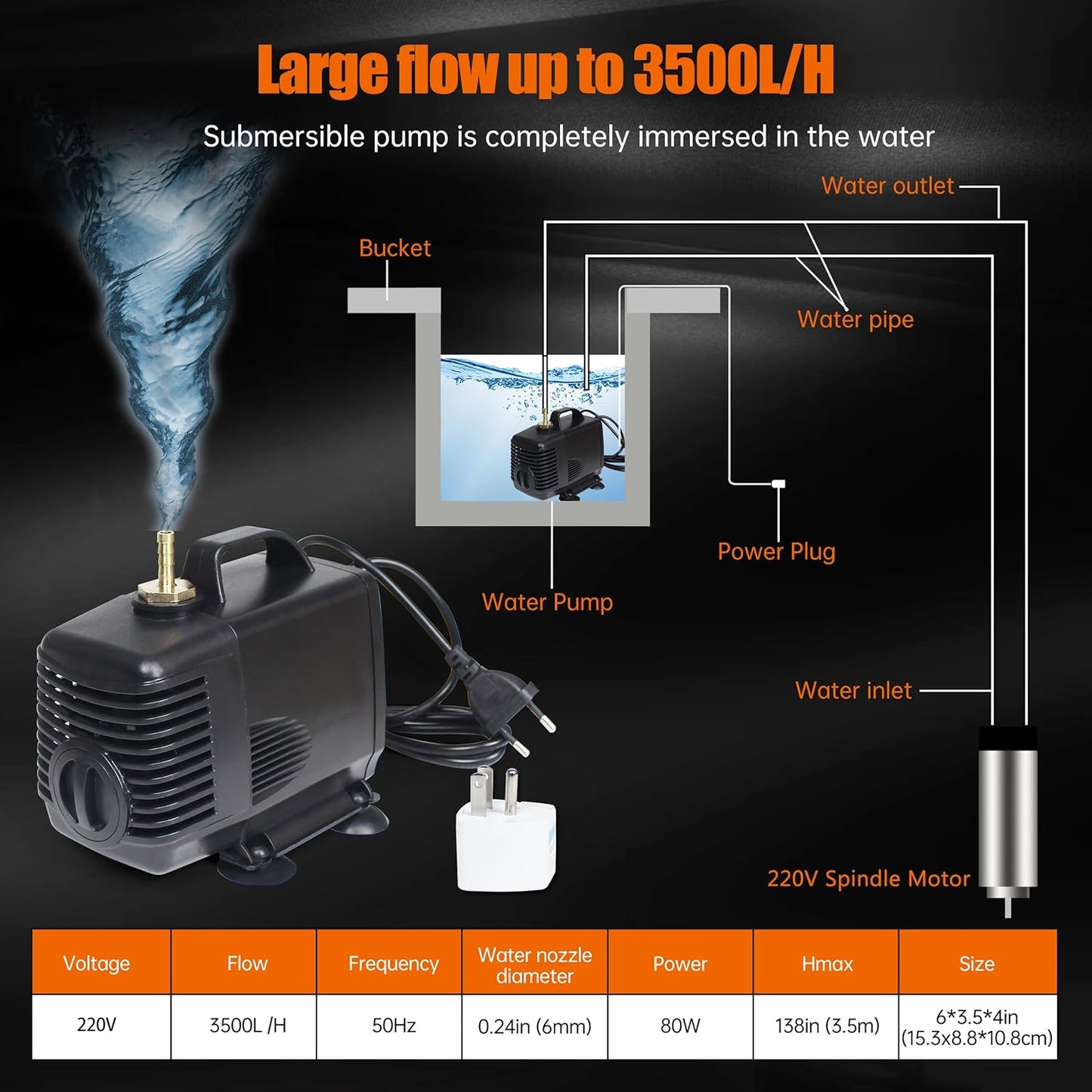

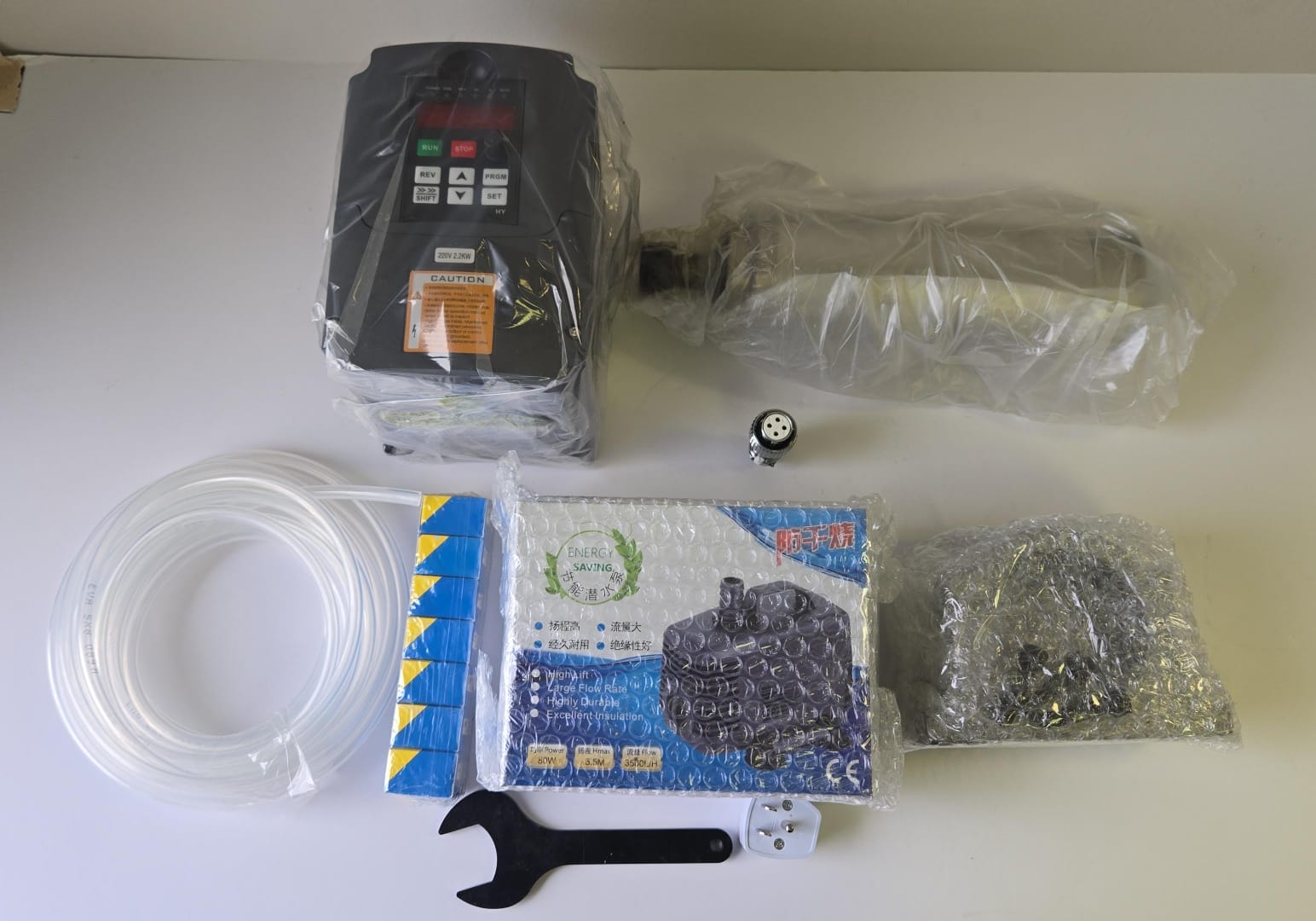

• 【Package Include】: ①1 x 2.2KW 220V Water Cooled Spindle Motor ②1 x 2.2KW VFD 220V ③1 x 80mm Spindle Motor Mount(with 3pcs screws) ④1 x 80W Water Pump ⑤1 x 5m Pipe ⑥1 x ER20 Wrench ⑦14 x ER20 Collet（1mm, 2mm, 3mm, 3.175mm, 4mm, 5mm, 6mm, 7mm, 8mm, 9mm, 10mm, 11mm, 12mm, 13mm）

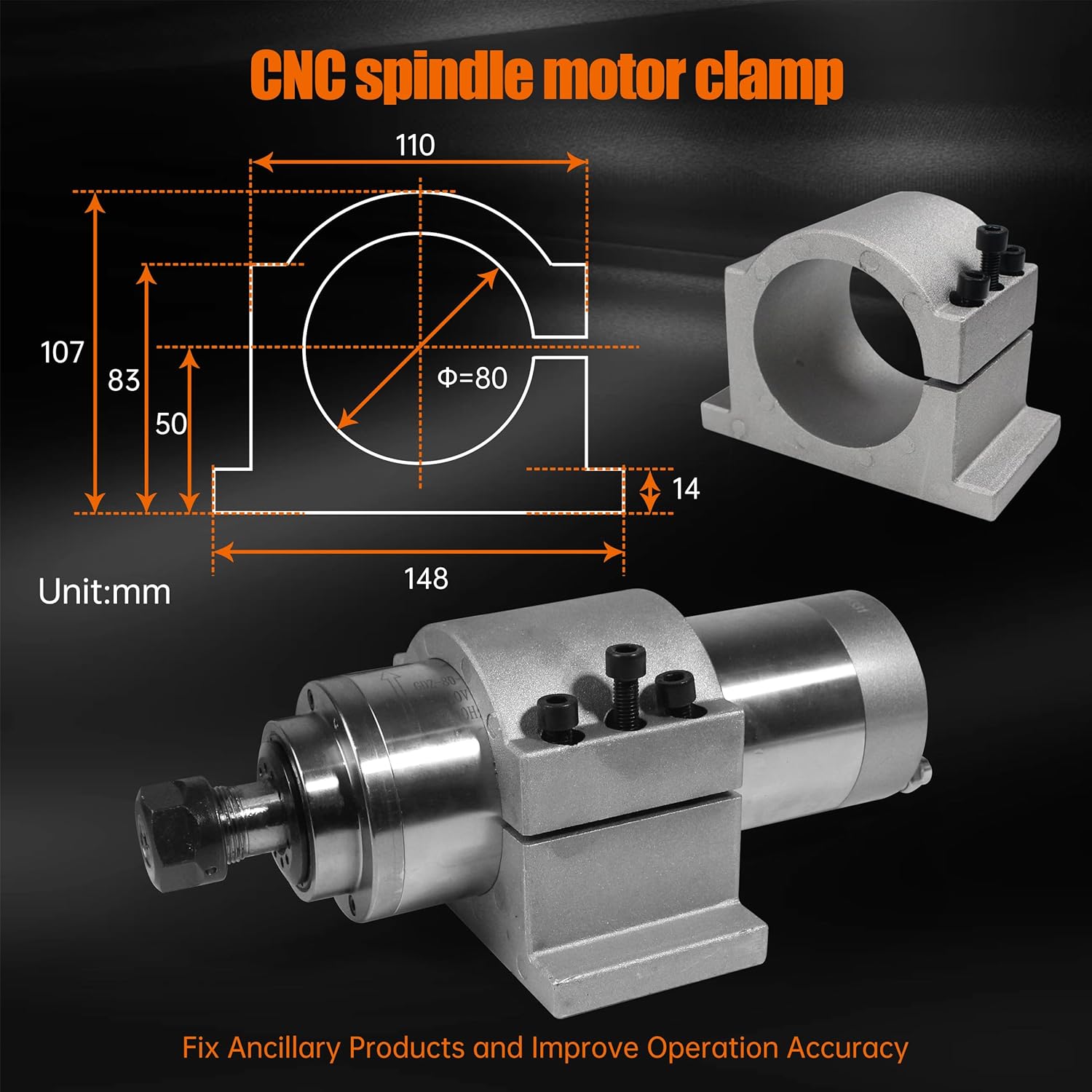

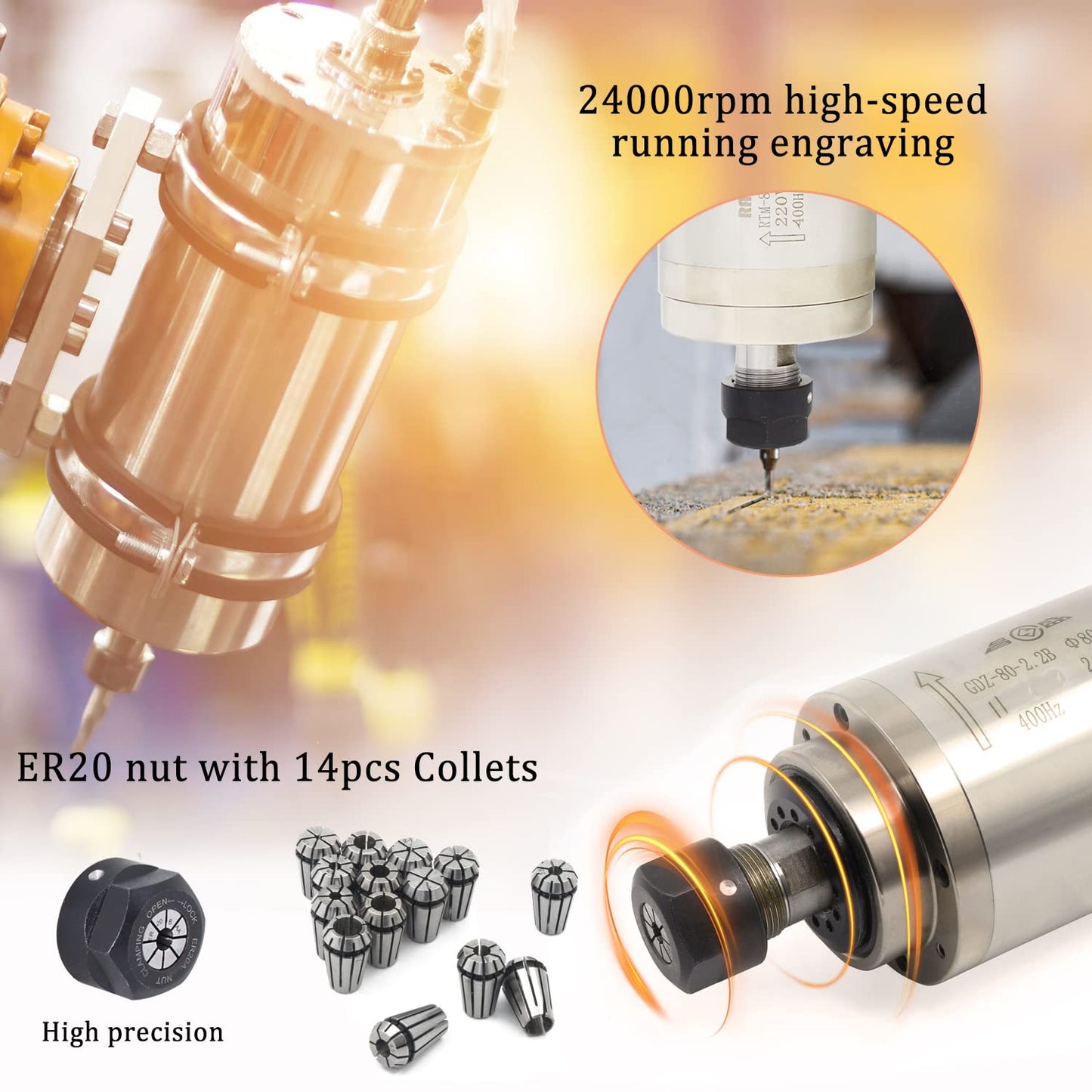

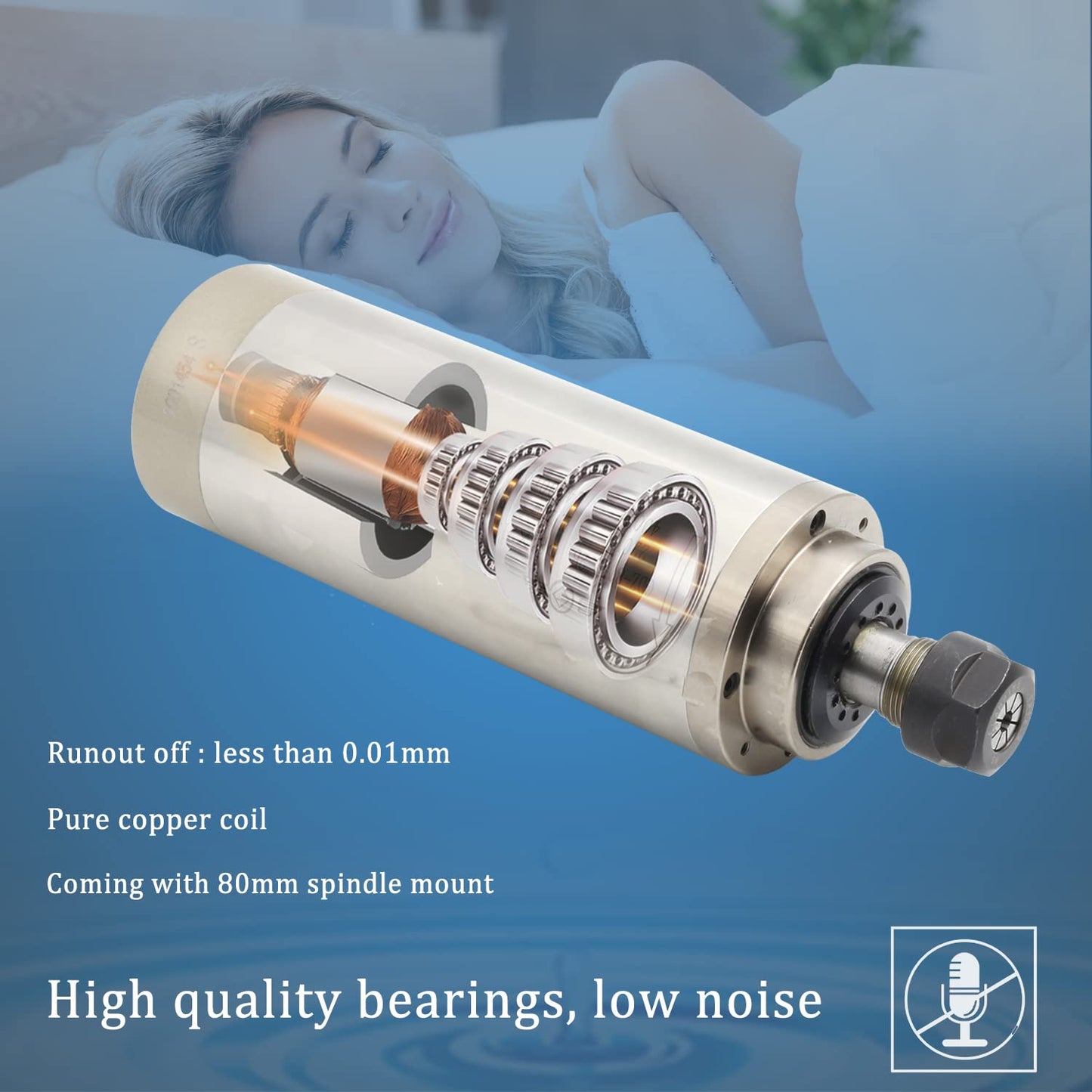

• 【2.2KW Spindle Motor】: ①This is a 220V-2.2KW water-cooled 8A Φ 80x213mm spindle motor come with a ER20 nut and collet, and equipped with a 80mm spindle mount. Frequency is 400HZ, 0.003--0.005 accuracy and runout off is Less than 0.01mm. ②Speed of The Spindle Motor : 0-24000RPM. Because it is a high-speed spindle motor, the spindle speed must not be lower than 9000 rpm during the use of the spindle. It should be noted that the spindle motor only can rotate clockwise but not counterclockwise.

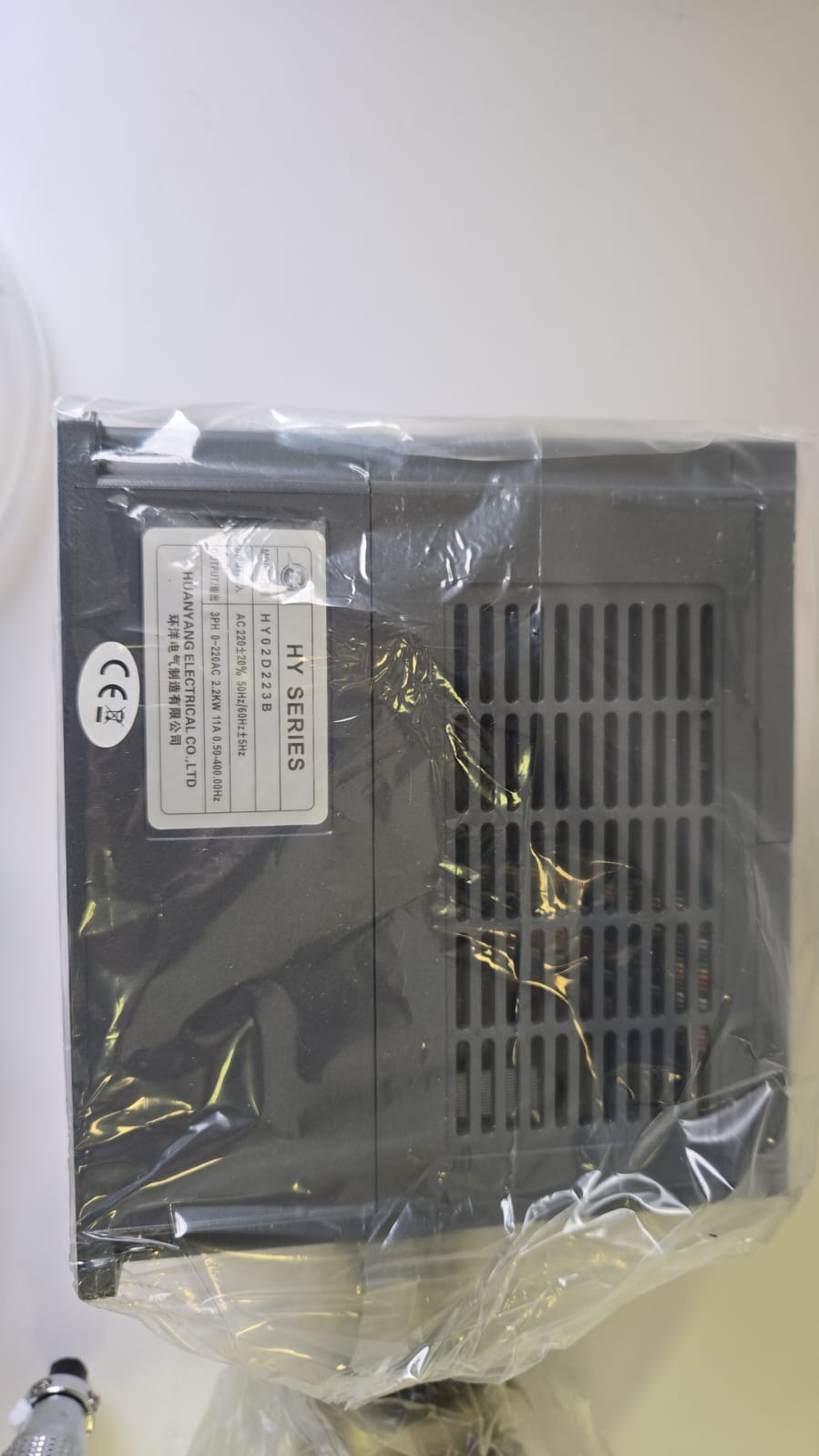

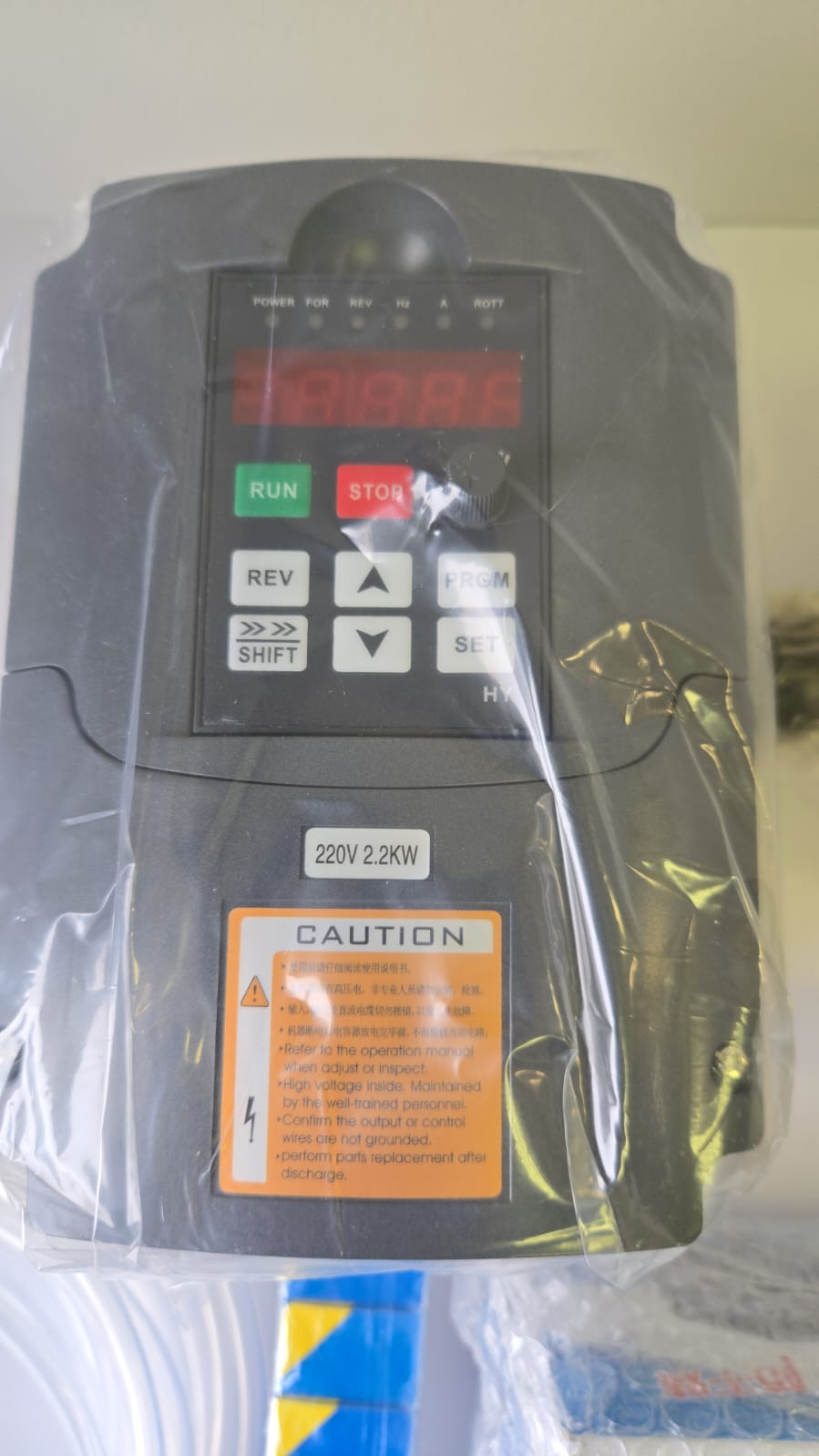

• 【2.2KW VFD Parameters】Control Model: SPWN. Power: 2.2KW. Input：1 or 3 phase 220V 0-50Hz/60Hz. Output：3 phase 220V 0-400Hz. Communication Control: RS-485. Vibration: below 0.5G. Operation Temperature: -10 ～40℃. Five-Digits Display and Status Indicator Lamp display frequency, current, revolution, voltage, counter, temperature, foward or reverse running, fault, ect.

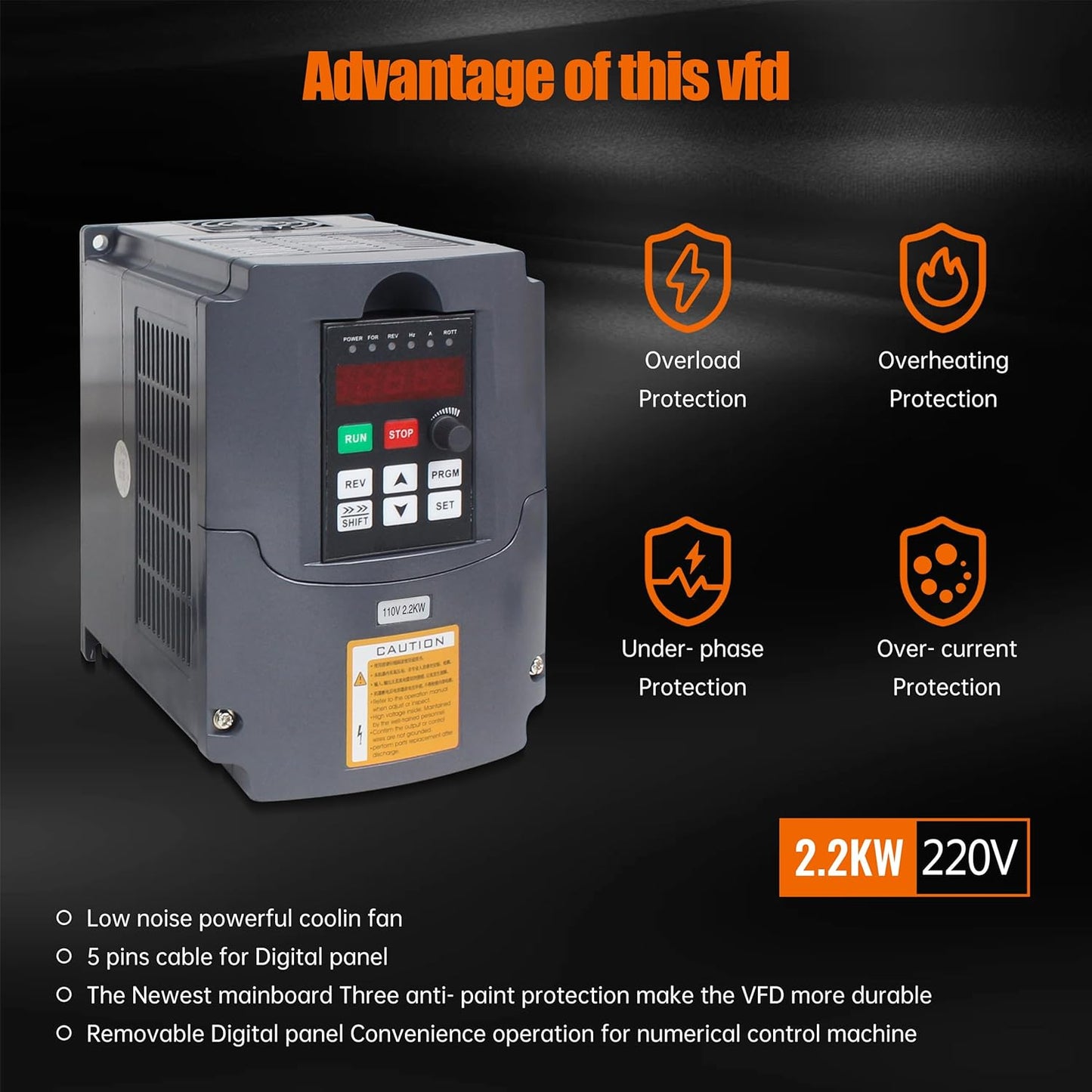

• 【Multi-Protection Functions of VFD】Including overload protection, FUSE broken-motor stops protection, over-voltage / low-voltage protection, restarted by frequency track after instantaneous stop, anti-stall during acceleration/deceleration operation, electronic circuit protection. There has many other protection functions, such as over-heat protection, restriction of reverse running, direct start after power on, fault reset, parameter lock PID, one-drive-more, ect.

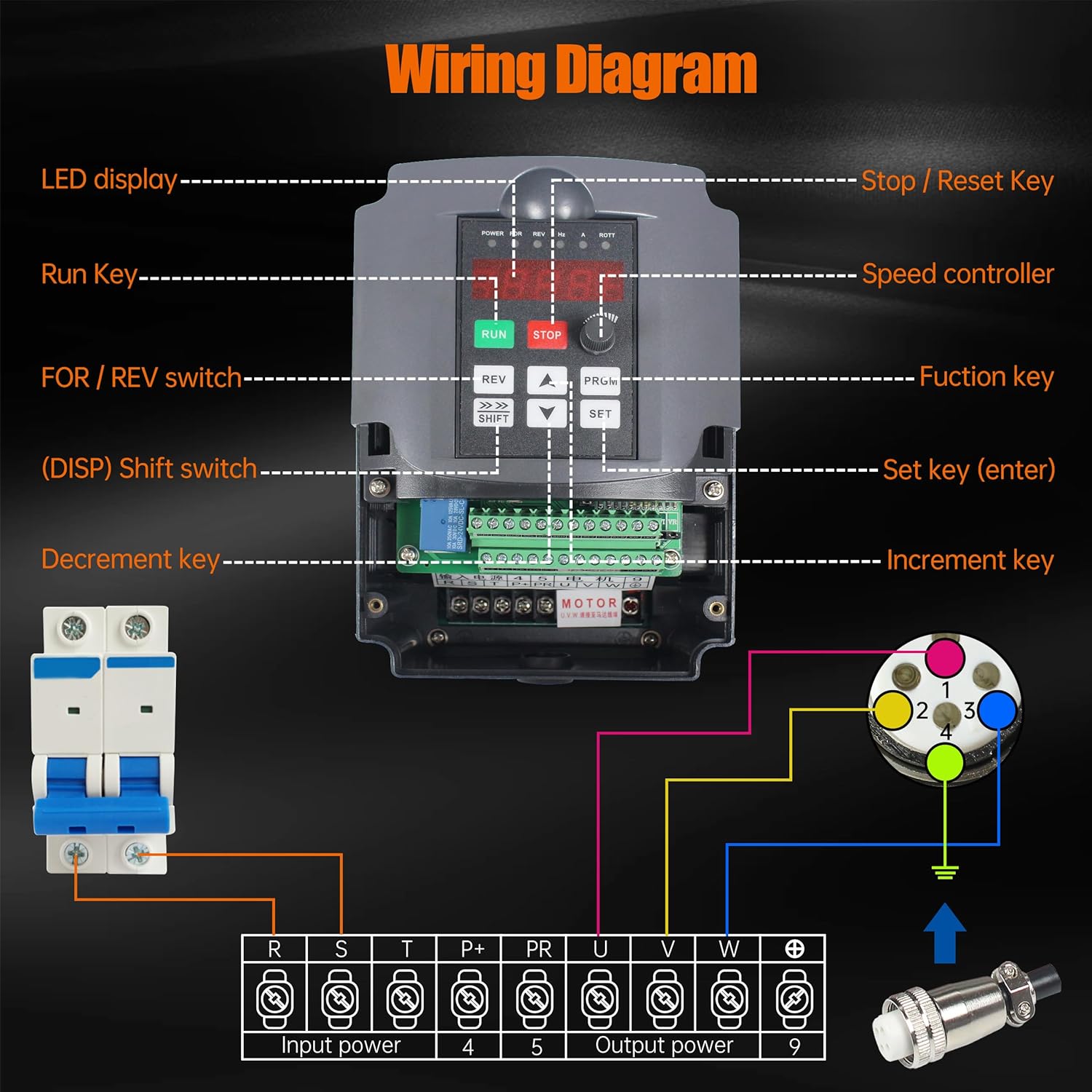

• 【How to Connect Spindle Motor and VFD】The spindle motor's aviation plug marked with number 1, 2, 3, 4. Number 1, 2, 3 port are connected separately with inverter's port U, V, W. Number 4 is the ground wire, no wiring is required.
